Default power wires

I did the series II swap to III and I have almost everything back together and I got it started today but I have a power wired that I have no clue where it goes. its one of the ones that come off the positive of the battery, one goes to the starter I have the black wire going to the fuse box but I one left over that I'm lost where to put it.

Old Nov 23, 2018 | 07:35 PM
  #2
peterpar's Avatar
2nd Gear member
Joined: Jun 2016
Posts: 611
Default

Originally Posted by iafrate
I did the series II swap to III and I have almost everything back together and I got it started today but I have a power wired that I have no clue where it goes. its one of the ones that come off the positive of the battery, one goes to the starter I have the black wire going to the fuse box but I one left over that I'm lost where to put it.
Help me out here, what is a series II to III swap? Are you saying the positive battery cable has three conductors coming from it? Most late models will have a conductor to the starter solenoid, another to the underhood fuse box and last one to the alternator.

Old Nov 23, 2018 | 09:31 PM
  #3
iafrate's Avatar
Thread Starter
|
Newbie
Joined: Nov 2018
Posts: 15
Default


Old Nov 23, 2018 | 09:32 PM
  #4
iafrate's Avatar
Thread Starter
|
Newbie
Joined: Nov 2018
Posts: 15
Default

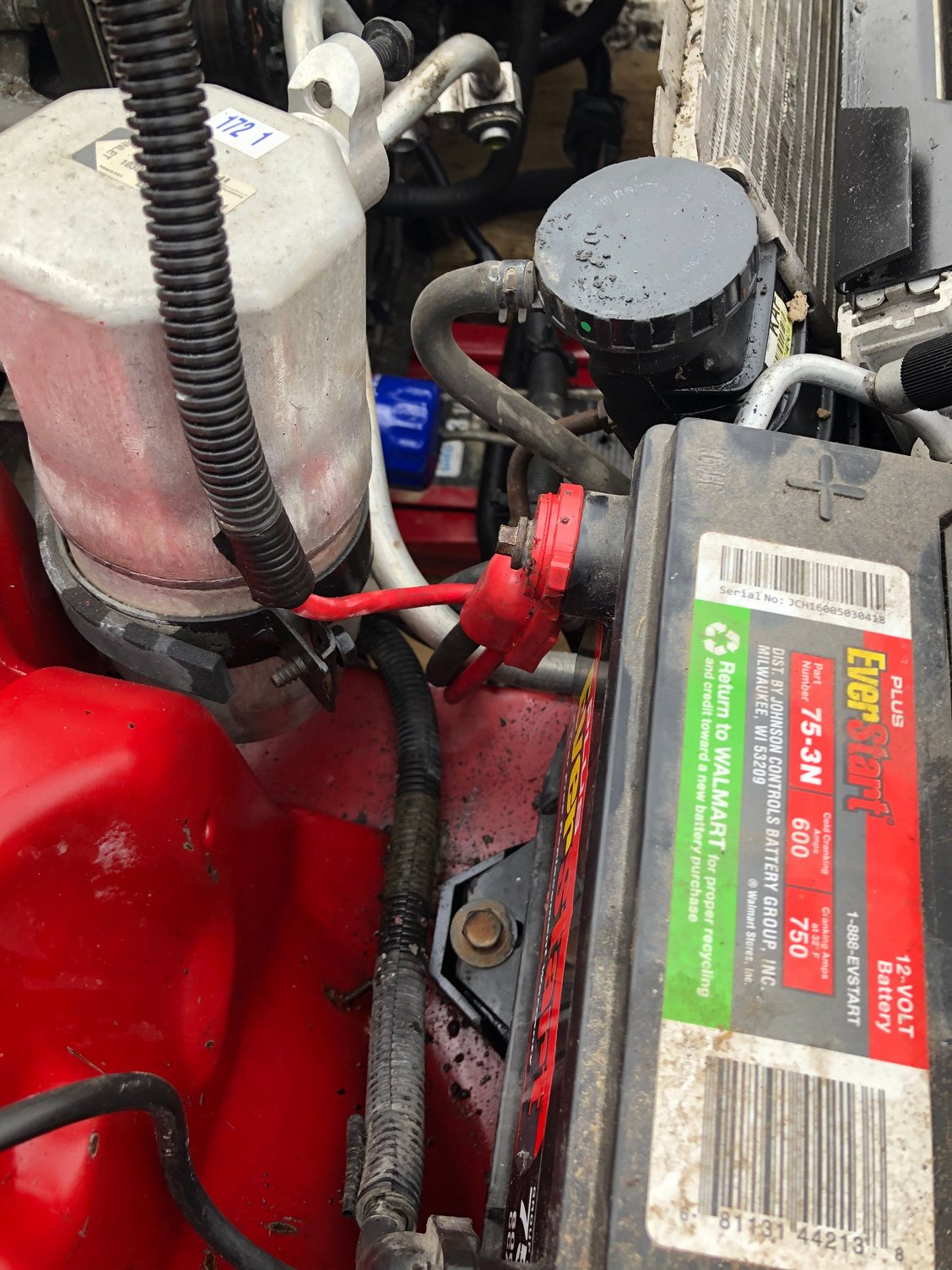

I took an engine out of a 2006 Buick which has a series III 3.8 in it. Anyways the black wire goes to the fuse box, one of the red goes to the starter and I have one more red wire, the alt is already connected and running. The wire has a ring connected at the end so it bolts down somewhere

Old Nov 23, 2018 | 10:15 PM
  #5
peterpar's Avatar
2nd Gear member
Joined: Jun 2016
Posts: 611
Default

Not sure how you have the alternator wired, but here's are several drawings from the 1996 Camaro Service Manual showing the battery cable terminations. There should be a cable from the large stud of the alternator to the positive post of the battery in order to recharge the battery.

Attached Files
File Type: pdf
1996 Battery Cable Routing.pdf (188.2 KB, 84 views)
Old Nov 24, 2018 | 12:14 PM
  #6
iafrate's Avatar
Thread Starter
|
Newbie
Joined: Nov 2018
Posts: 15
Default

Ok yeah I see what you are talking about now, thank you!
