Default Rear brake pad hardware

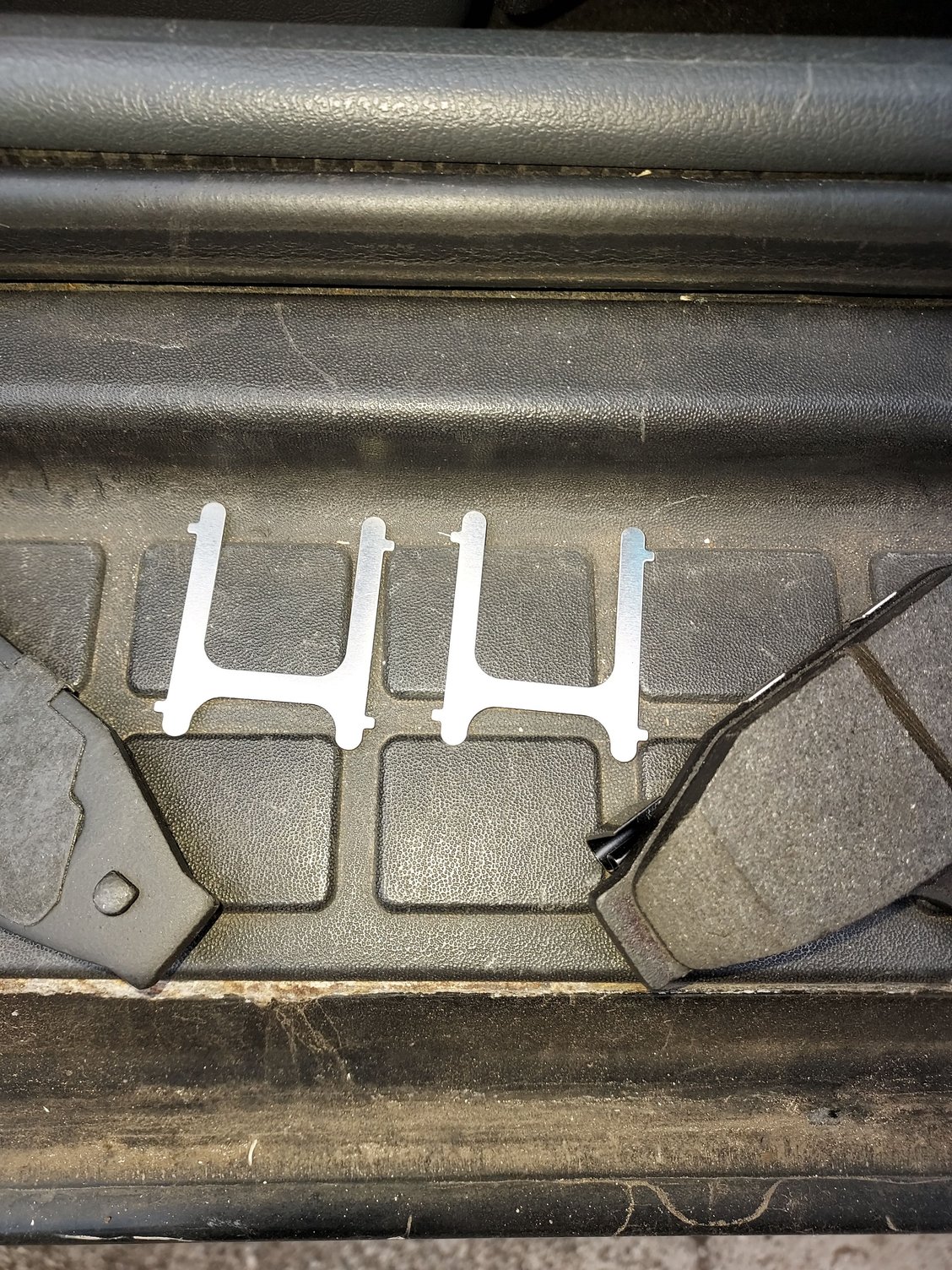

Replacing the rear pads on my 94 z28. This hardware came with the new pads but can't figure out where they go. I looked online and several diagrams show it but not in specific placement. My old pads didn't have it. Help?

Reply
Old Jul 12, 2023 | 12:12 PM
Share
  #2
peterpar's Avatar
2nd Gear member
Joined: Jun 2016
Posts: 611
Default

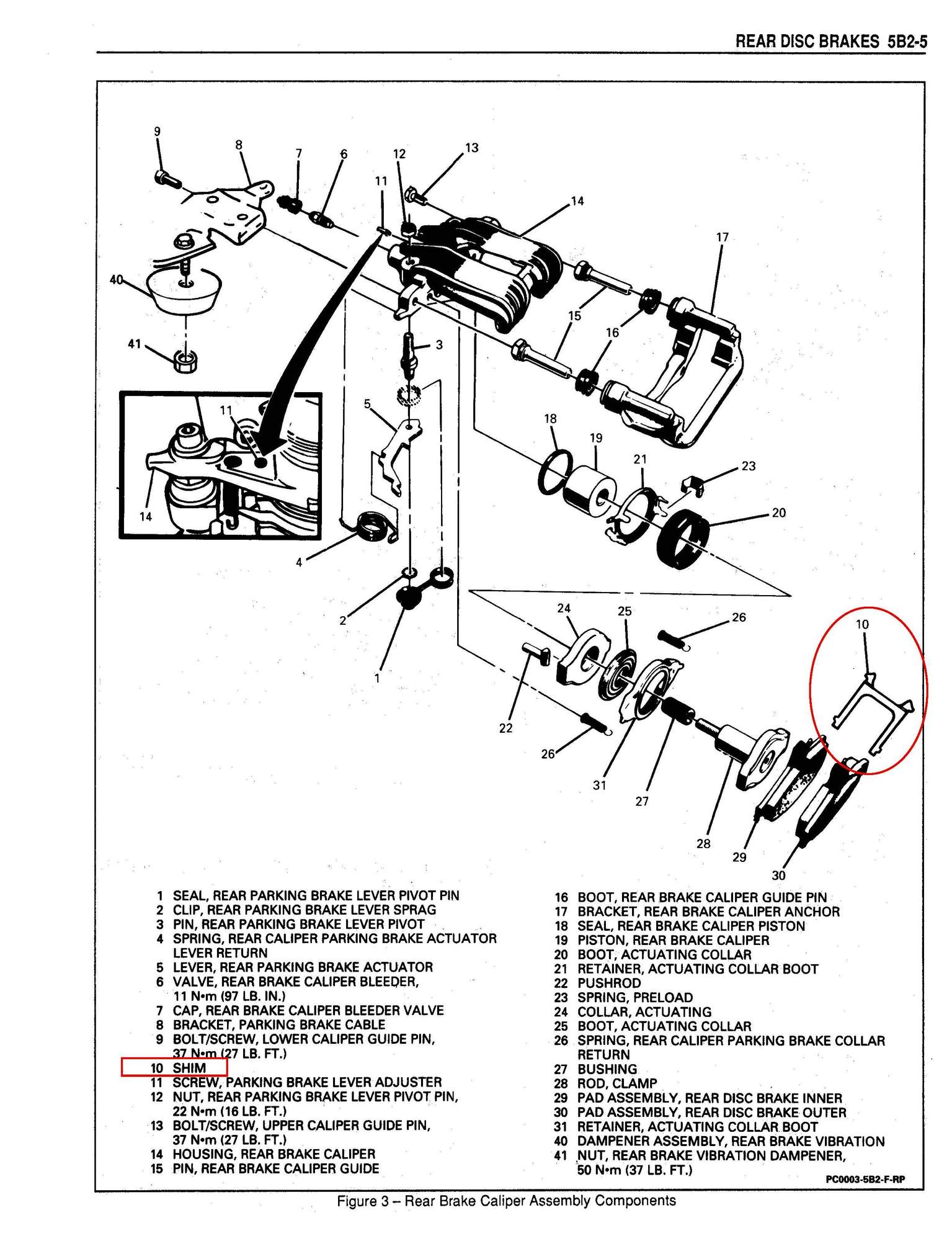

This illustration is from the 1994 Service Manual. I've also attached the pages from the manual that go through the process of replacing the brake pads that may be a help.



Attached Files
File Type: pdf
1994 Rear Brake Caliber.pdf (171.2 KB, 111 views)
Reply
Old Jul 13, 2023 | 03:04 AM
Share
  #3
sewerrat's Avatar
Thread Starter
|
2nd Gear member
Joined: Jul 2005
Posts: 467
From: Maui, Hawaii
Default
Thanks, good info. Now I see the indentation on the inside of the caliper for the clips.
