Post 79 Z28 Build sheet

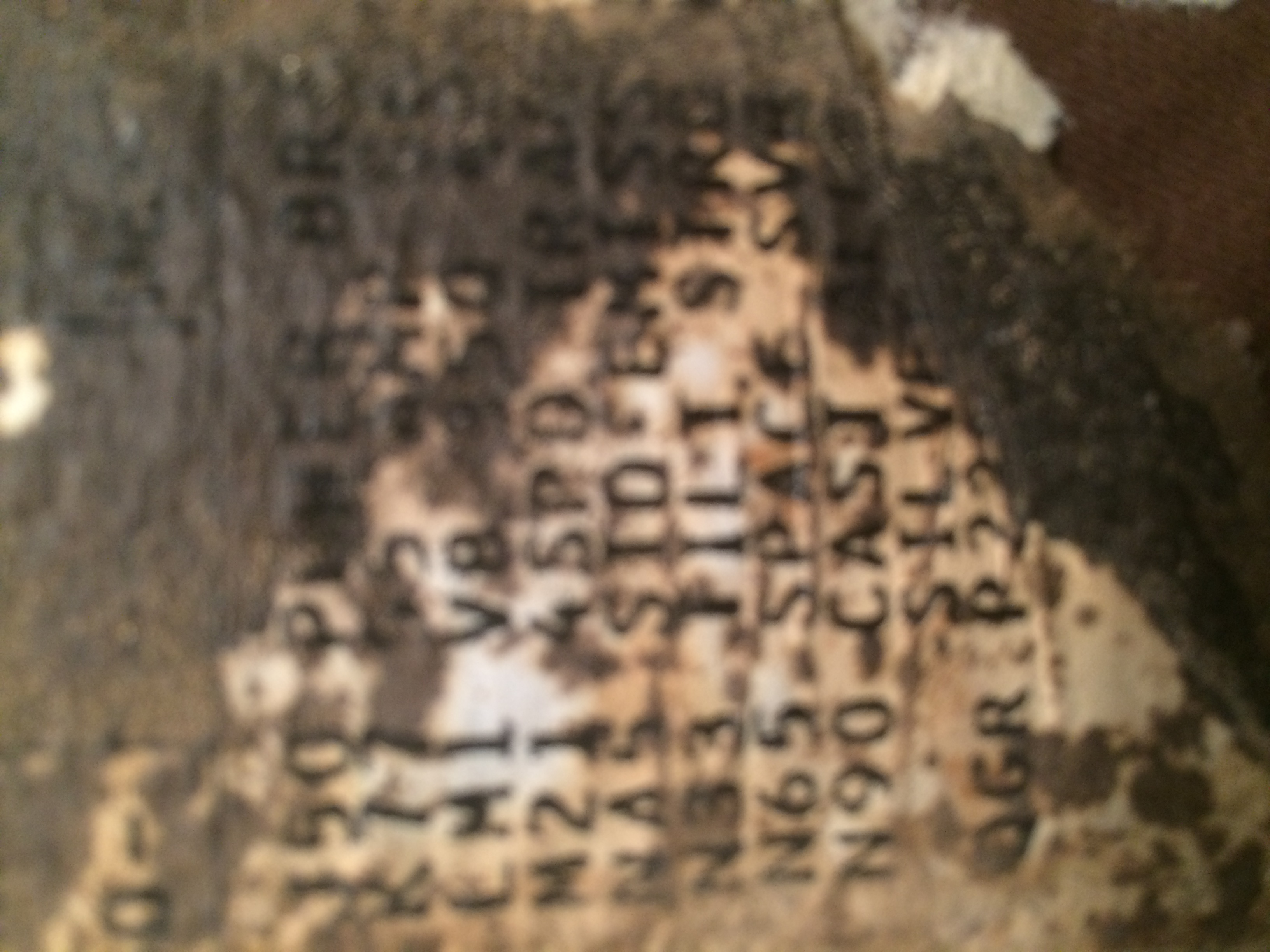

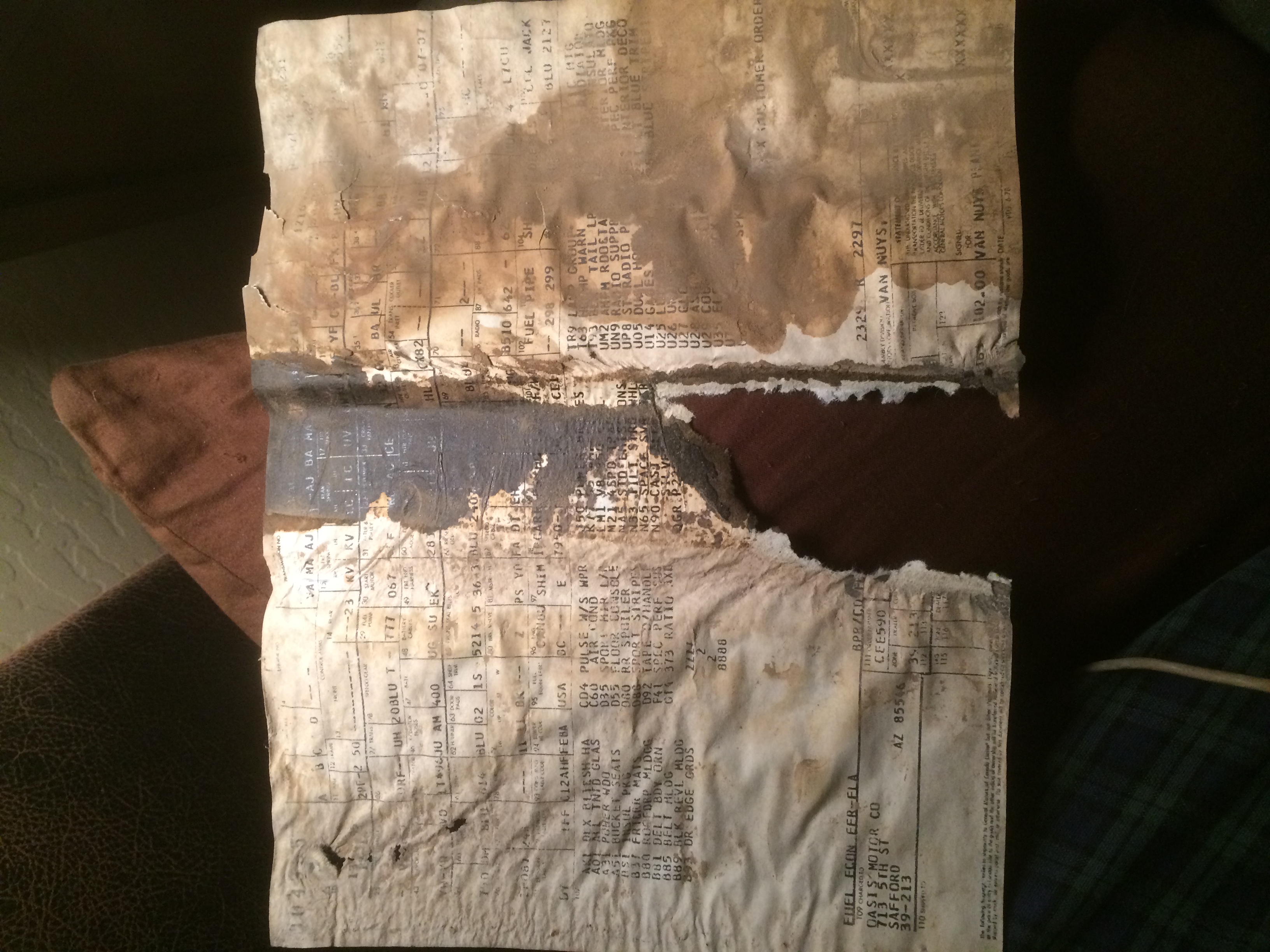

Hey guys, I am new to the forum and also new to Camaros. I just recently purchased my first Camaro about 2 months ago. Advertised as a 4 speed car. So I grabbed some cash and my trailer and went to go check it out. Upon inspecting the car I had noticed it was a California produced car. I read online that in the 79 model year no manual transmissions came factory in california produced cars (Correct or not?) Anyways, I ended up buying it because I didn't think it was a bad deal even though I had figured it was not a factory 4 speed. Fast forward 2 months ago to yesterday, I had pulled the gas tank out to flush it and low and behold there was a build sheet still attached to the gas tank. I removed the build sheet and set it aside. Later on I started to study the build sheet, and come to find out, the car was produced at the Van Nuys plant and has engine code DRF, transmission code UH, and does have M21 4SPD TRANS in the options list. Also the build sheet has "customer order" in the bottom right corner with what looks to be 2 or 3 digits that I cannot make out printed before "customer order". Can anyone shed some light on this for me? I would greatly appreciate it. Also I have some pics attached.

Attached Thumbnails 79 Z28 Build sheet-img_2020.jpg   79 Z28 Build sheet-img_2021.jpg   79 Z28 Build sheet-img_2022.jpg
Old Apr 28, 2017 | 09:36 PM
  #2
Y2K's Avatar
Y2K
4th Gear Member
Joined: Sep 2006
Posts: 1,950
From: Yacolt,WA
Default

Something doesn't add up,the Muncie was replaced by the BorgWarner ST-10 after 1974 so it didn't come with a Muncie.
Camaro Transmission Information & Restoration

Old Apr 28, 2017 | 11:15 PM
  #3
Willpin270's Avatar
Thread Starter
|
Newbie
Joined: Apr 2017
Posts: 2
Default

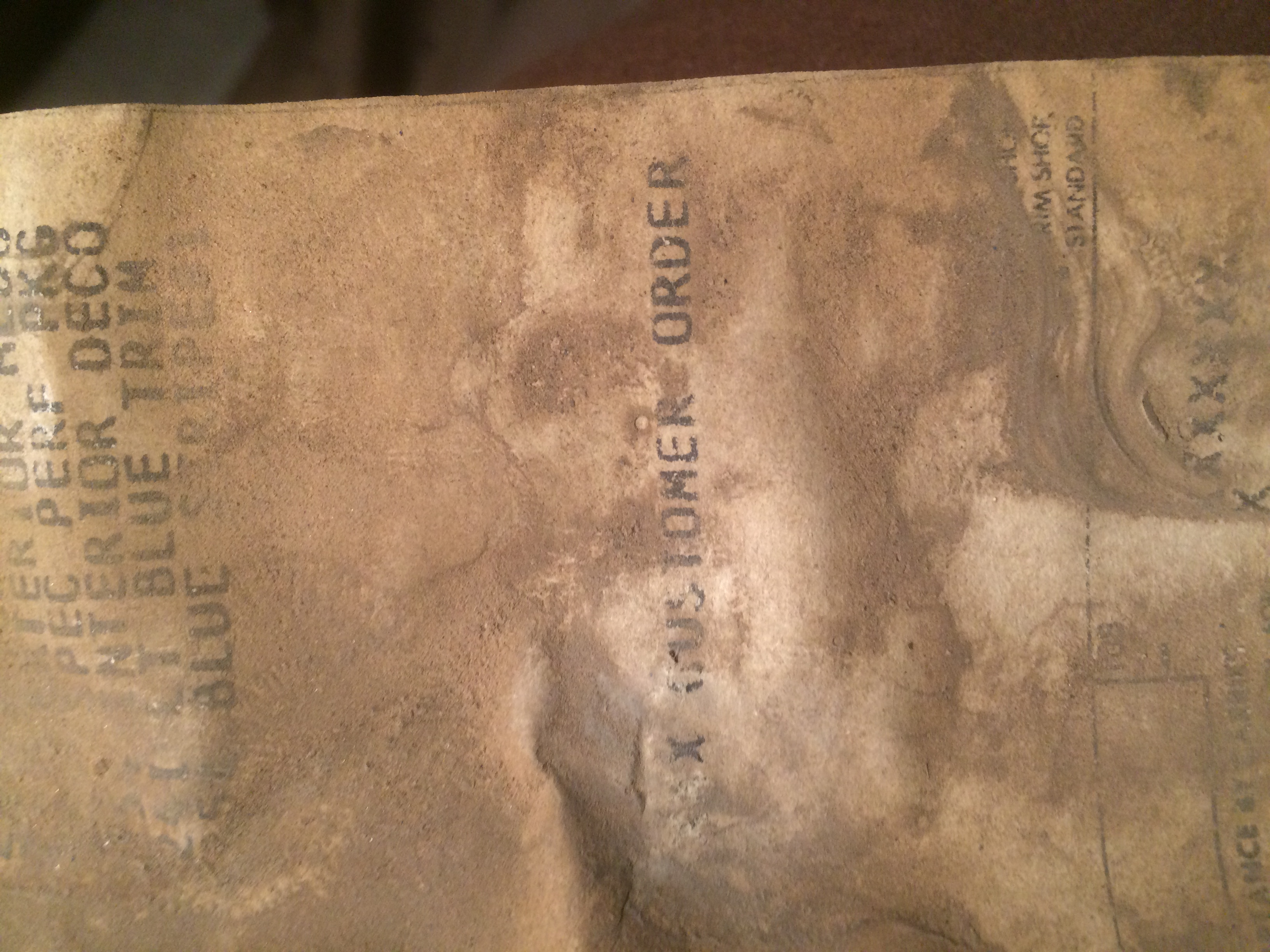

That's what I thought. Like I said I'm no expert I'm brand new to Camaros but I thought something was weird. I had the car jacked up today and I checked the transmission out and it's all aluminum, and I can see where it says Borg Warner right on it. Also I studied the build sheet a bit more today and the 3 digits before "customer order" are 3 X's. Any more info would be greatly appreciated!

Old Apr 29, 2017 | 05:35 AM
  #4
Zspoiler's Avatar
2nd Gear member
Joined: Jun 2013
Posts: 705
From: Federal Way,WA
Default

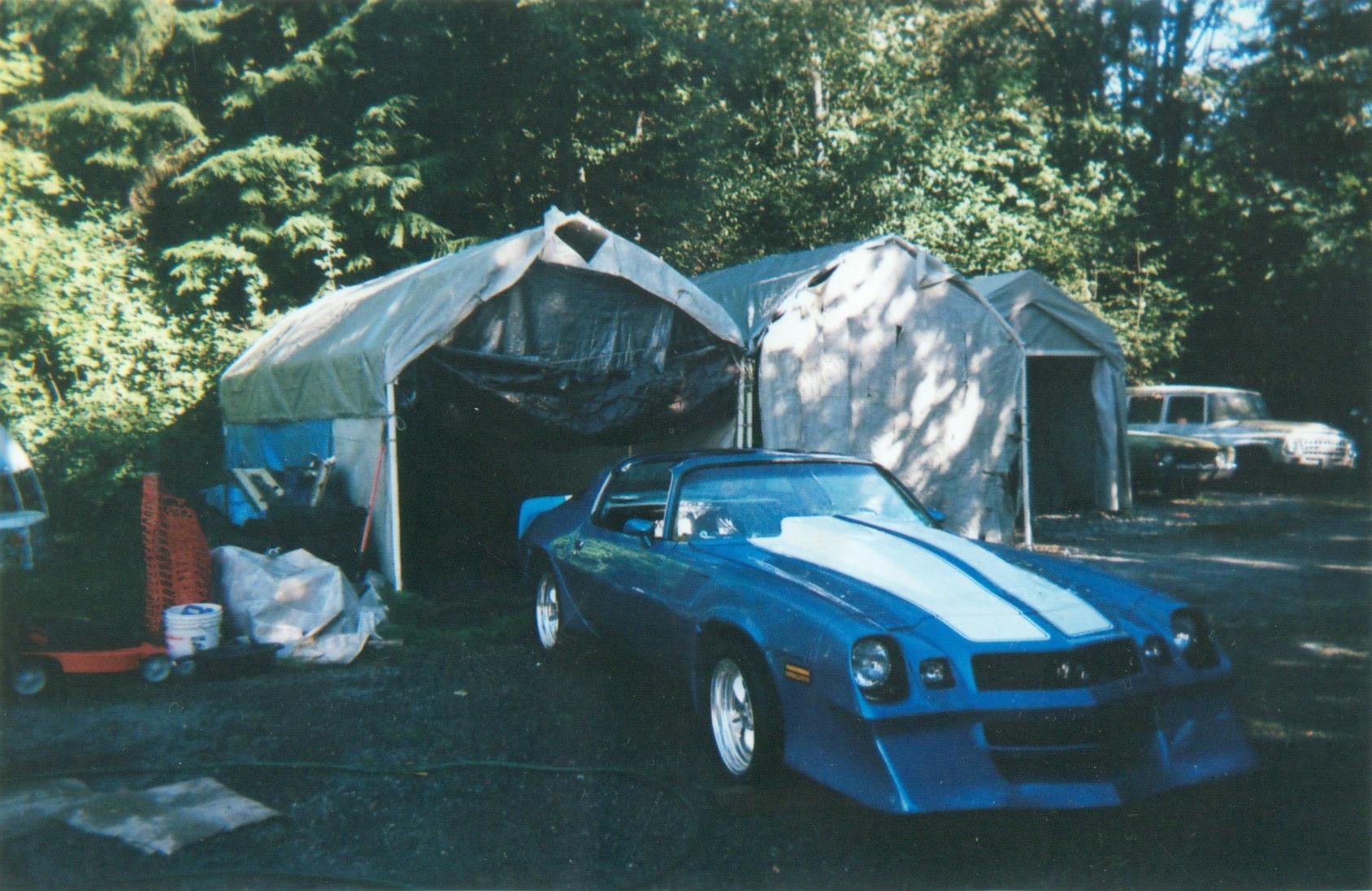

Do have the other books that came car.Like the owner manual ,and warranty book.? Mine was originally a automatic car .A 1979 Z-28 RS with all the bells and whistles..A good source of information besides this site is your local Camaro club.

Attached Thumbnails 79 Z28 Build sheet-130044932860518017_26257430996_o-1-.jpg
Old Apr 29, 2017 | 07:52 PM
  #5
Y2K's Avatar
Y2K
4th Gear Member
Joined: Sep 2006
Posts: 1,950
From: Yacolt,WA
Default

Originally Posted by Willpin270
I can see where it says Borg Warner right on it.
Well then it's a T-10 not a Muncie. A T-10 would be the correct trans for that year car, nothing wrong with a T-10,same design actually although parts don't interchange.
