Just purchased a 2002 35th Anniversary coupe and am in the process of decoding the Service Parts Identification label. Have found all the RPO codes except the following: CAE, IP3, NF7, PBT, TS9, VE2, Y2Y, Z4C, 191, 193, 6BS, 7BS, 8TJ and 9TJ.

Would appreciate any help in identifying these RPO codes.



193 - int ebony
19i - ebony interior trim
1sd - option package 04
1sz - preferred equipment savings
6bs - front spring
7bs - front spring
81q - bright red body side molding
81u - bright rally red
8tj - rear spring
9tj - rear spring
a31 - power windows w/ driver's side express down
a90 - power hatch release
ag1 - six-way power driver seat
ak5 - driver & right front passenger air bags
ar9 - cloth bucket seats
au0 - keyless remote entry w/ illuminated interior feature w/theft deterrent alarm sys
au3 - power door lock system with delayed accessory buss
b84 - body side moldings
c49 - electric rear window defogger
c60 - air conditioning
cae - upfitter conversion - z28
cc1 - removable roof panels w/locks
de4 - removable roof panel sunshades
dg7 - elec twin remote sport mirrors
dl5 - roadside service information decal
fe4 - ride & handling suspension system
fe9 - 50-state low emission vehicle
g80 - limited slip differential
gu5 - performance axle ip3 - interior trim design
j65 - power disc front & rear brakes
k34 - cruise control-electronic
k43 - generator 102 amp
ls1 - eng 5.7 liter sfi v8 engine
m30 - 4 speed electronic automatic transmission with overdrive
mx0 - 4-speed automatic transmission
nf7 - federal emission system nlev
np5 - leather wrapped steering wheel
pbt - id temporary hood, proc option
qfk - p275/40 zr-17 s/b radial b/w
qg4 - wheel 17 x 9, aluminum, machine faced
slm - stock orders
ste - st therese, gm of canada plant code t82 - twilight sentinel headlamps
t96 - fog lamps
ts9 - high level stop lamp - delete
u73 - fixed mast antenna
ua6 - theft deterrent alarm system
ub3 - gage package with tachometer
uk3 - leather wrapped steering wheel w/radio controls
un0 - am/fm stereo radio with seek-scan,digital clock, auto- tone control, cd player, theftlock, and speed compensated volume (base radio)
uz7 - monsoon premium sound system with 8 speakers and auxiliary amplifier (base system z28 & uplevel on base coupe)
v12 - power steering cooling system
v73 - statement of vehicle cert.-u.s. /canada
ve2 - protector source application
vk3 - front license plate mount
vm3 - consumer information label
wu8 - "ss" performance/appearance pkg includes: *325 horsepower *forced air induction hood *17" aluminum wheels *ss specific rear spoiler *hi perf. Ride & handling susp. *low restriction dual outlet exhaust system *ss badging
y2y - sales package camaro ss dual z28 - camaro z28
z4c - ******************************* *35th anniversary spl edition *



CAE was the code used on all Camaro SS's and Firehawks that went to SLP for the SS upfit. The code was used to put the cars in a different yard than the other cars so that the shipper would bring those cars to SLP.



I can't give you all the RPO descriptions, but here is what I know.

• CAE = GM ST Therese to SLP LaSalle
• IP3 = ?
• NF7 = ?
• PBT =Temporary Hood for Upfitter Delivery
• TS9 = Delete Level Stop Lamp
• Y2Y = SLP Second Sticker Content
• Z4C = 35th Anniversary Limited Edition
• 191 = Interior Trim Color
• 193 = Ebony Seats with Pewter inserts
• 6BS = ?
• 7BS = ?
• 8TJ = Computer Select Suspension
• 9TJ = Computer Select Suspension

I think IP3 has something to do with the Interior because IP2 is defined as Interior Design and NF7 probably refers an emission system because NF2 is described as Tier 1 Federal Emission System. 6BS and 7BS I think refers to suspension equipment.



https://ls1tech.com/forums/new-ls1-o...y2y-codes.html



Home : The Official SLP Registry



Also, try here:
GM Options : The Official Firehawk Owners Site



Thanks a bunch guys!
The only one I don't have now is IP3.

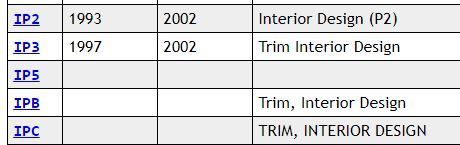

Interior Trim Design - check the site I posted. What kind of design -- IDK.



Thanks!
